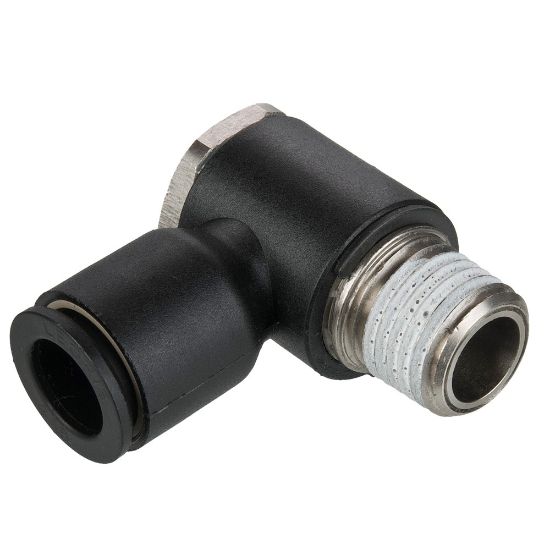

W369PLPBJ-8M-4R - Composite Push-to-Connect Fittings - PLP Composite

Parker Prestolok composite push-to-connect fittings provide a simple way of connecting tubes to a fitting. Prestolok composite push in fittings reduce assembly time by eliminating the use of a sleeve and tightening of a nut.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	20 in stock

SKU W369PLPBJ-8M-4R

$17.29/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 1 Type	Push-to-Connect
Product Style	Single Banjo	Connection 1 Tube Outside Diameter	8 mm (O.D.)
Configuration	Tube to Pipe	Connection 2 Size	1/4"
Connection 1 Size	8 mm	Body Material	Glass-Reinforced Nylon
Connection 2 Type	BSPT	Connection 2 Thread Size	1/4"
Connection Type	n/a	Division	Fluid System Connectors Division
Tube Material	Nylon Semi-Rigid	Gripping Ring Material	n/a
Specifications Met	RoHS DI: 2002/95/EC	Application	Pneumatics
Body Material	n/a
