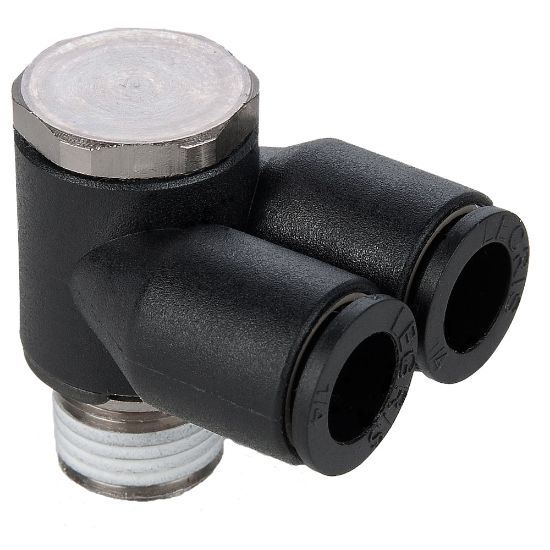

W369PLPTJ-4-2 - Composite Push-to-Connect Fittings - PLP Composite

Parker Prestolok composite push-to-connect fittings provide a simple way of connecting tubes to a fitting. Prestolok composite push in fittings reduce assembly time by eliminating the use of a sleeve and tightening of a nut.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	14 in stock

SKU W369PLPTJ-4-2

$27.46/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Product Style	Twin Banjo
Connection 2 Type	NPT	Connection 1 Size	1/4"
Connection 1 Type	Push-to-Connect	Connection 1 Tube Outside Diameter	1/4" (O.D.)
Connection 2 Thread Size	1/8"	Configuration	Tube to Pipe
Connection 3 Size	1/8"	Connection 3 Type	Male NPT Threads
Connection 2 Size	1/4"	Body Material	Glass-Reinforced Nylon
Maximum Operating Pressure	290	Body Material	N/A
Application	Pneumatics, Packaging, Textile, Vacuum, Semi-Conductors, Robotics	Connection Type	NPTF, BSPT, UNF, Metric
Division	Fluid System Connectors Division	Fitting Material	Glass Reinforced Nylon 6.6
Tube Material	N/A	Gripping Ring Material	Stainless Steel
Seal Material	Nitrile	Maximum Operating Temperature	175
Minimum Operating Temperature	-4	Specifications Met	N/A
Silicone Free	N/A
