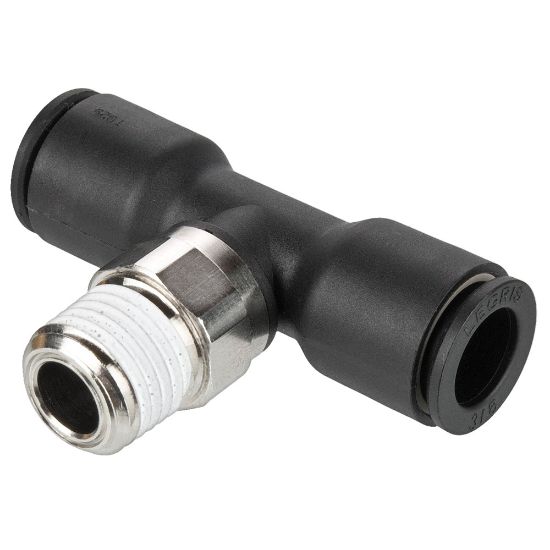

W372PLP-4M-4 - Composite Push-to-Connect Fittings - PLP Composite

Name: W372PLP-4M-4 - Composite Push-to-Connect Fittings - PLP Composite
SKU: W372PLP-4M-4
Price: 10.97 USD
Availability: LimitedAvailability

Parker Prestolok composite push-to-connect fittings provide a simple way of connecting tubes to a fitting. Prestolok composite push in fittings reduce assembly time by eliminating the use of a sleeve and tightening of a nut.

Manufacturer: Parker

Availability:

1 Limited Stock

Olivette, MO

Partner Available:

494 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU W372PLP-4M-4

$10.97/each

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 1 Size	4 mm
Connection 2 Type	NPT	Connection 1 Tube Outside Diameter	4 mm (O.D.)
Connection 3 Type	Male NPT Threads	Connection 1 Type	Push-to-Connect
Shape	Branch Tee	Configuration	Tube to Pipe
Connection 2 Size	4 mm	Body Material	Glass-Reinforced Nylon
Connection 2 Thread Size	1/4"	Connection 3 Size	1/4"
Product Style	Tube to Pipe	Body Material	Glass Reinforced Nylon 6.6
Maximum Operating Pressure	20 bar	Maximum Operating Temperature	80 °C
Division	Fluid System Connectors Division	Connection Type	N/A
Fitting Material	N/A	Silicone Free	Yes
Tube Material	Nylon Semi-Rigid, Polyurethane 95 Durometer, Nylon, Fluoropolymer	Seal Material	Nitrile
Gripping Ring Material	N/A	Application	Pneumatics, Packaging, Textile, Vacuum, Semi-Conductors, Robotics
Specifications Met	ISO 14743, DI: 97/23/EC, DI: 2002/95/EC, DI: 1907/2006	Minimum Operating Temperature	-4 °F
