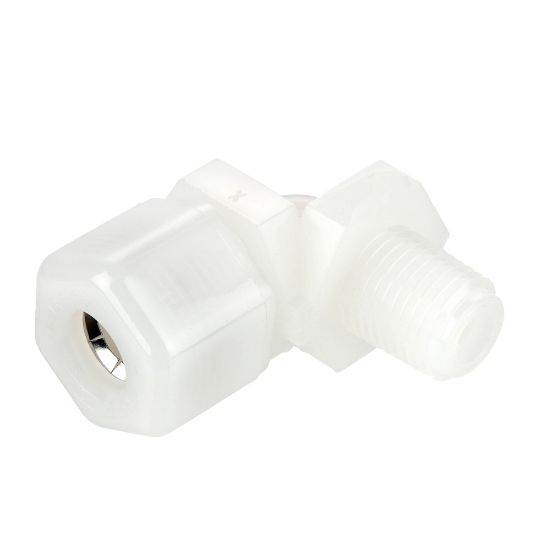

N10ME8 - Compression Style Plastic Fittings, Fast-Tite

Parker's Fast & Tite fittings installs in seconds without tools for a leak proof seal. Fast & Tite meets FDA and NSF-51 requirements for food contact.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 52 days
Partner Available:	3 in stock

SKU N10ME8

$5.73/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 1 Tube Outside Diameter	5/8" (O.D.)
Shape	Elbow 90°	Connection 2 Thread Size	1/2"
Connection 1 Type	Compression	Configuration	Tube to Pipe
Connection 2 Type	NPTF	Body Material	Nylon
Division	Fluid System Connectors Division	For Fluid Type	Air
Maximum Operating Temperature	93 °C	Seal Material	Nitrile (O-Ring)
Gripping Ring Material	Stainless Steel AISI 302	Tube Material	Soft Metal
Specifications Met	FDA	Application	Purification
Minimum Operating Temperature	-40 °F	Body Material	Nylon
Maximum Operating Pressure	3.5 bar
