*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

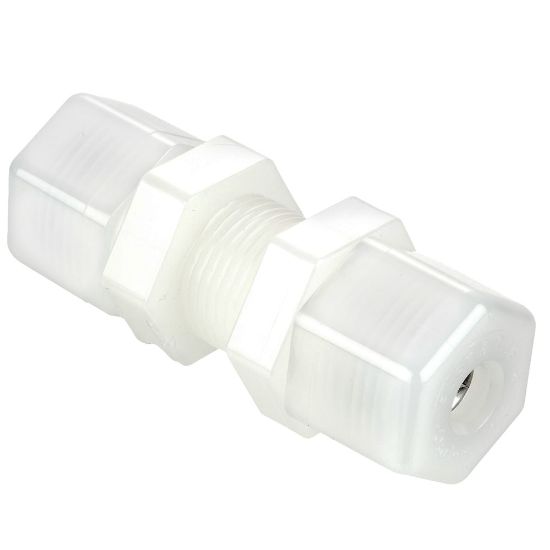

N4BU4 - Compression Style Plastic Fittings, Fast-Tite

Name: N4BU4 - Compression Style Plastic Fittings, Fast-Tite
SKU: N4BU4
Price: 6.67 USD
Availability: InStock

Parker's Fast & Tite fittings installs in seconds without tools for a leak proof seal. Fast & Tite meets FDA and NSF-51 requirements for food contact.

Manufacturer: Parker

Availability:

17 in stock

Olivette, MO	9
Wichita, KS	8

Partner Available:

Backordered

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU N4BU4

$6.67/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Configuration	Tube to Tube
Connection 1 Type	Compression	Connection 2 Type	Compression
Connection 1 Tube Outside Diameter	1/4" (O.D.)	Connection 2 Tube Outside Diameter	1/4" (O.D.)
Product Style	Bulkhead	Body Material	Nylon
O-Ring Material	Nitrile	Maximum Operating Pressure	3.5 bar
Application	Filtration, Purification, Dispensing	Dimensional Weight	0.5504 lb
Division	Fluid System Connectors Division	Body Material	Nylon
Tube Material	Thermoplastic, Glass, Soft Metal	Media	Water, Air, Other Compatible Fluids
Gripping Ring Material	302 Stainless Steel	Maximum Operating Temperature	200 °F
Specifications Met	FDA, NSF-51	Minimum Operating Temperature	-40 °F

Product resources

Compliance, Certifications & Safety

Literature and Reference Materials
