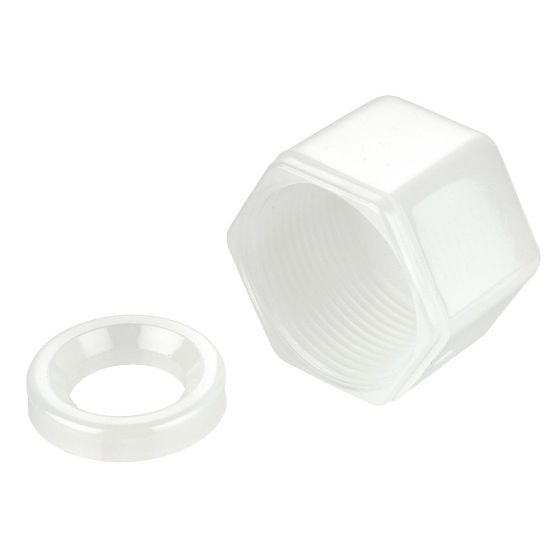

N4NS - Compression Style Plastic Fittings, Fast-Tite

Parker's Fast & Tite fittings installs in seconds without tools for a leak proof seal. Fast & Tite meets FDA and NSF-51 requirements for food contact.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 17 days
Partner Available:	200 in stock

SKU N4NS

Products specifications

Attribute name	Attribute value
UOM	EA	Product Style	Tube
Connection 1 Type	Tube	Connection 1 Tube Outside Diameter	1/4" (O.D.)
Body Material	Nylon	Division	Fluid System Connectors Division
Maximum Operating Temperature	93 °C	Media	Water, Air, Other Compatible Fluids
Tube Material	Thermoplastic, Glass, Soft Metal	Gripping Ring Material	302 Stainless Steel
Application	Filtration, Purification, Dispensing	Specifications Met	FDA, NSF-51
Minimum Operating Temperature	-40 °C	Maximum Operating Pressure	20 bar
Body Material	Nylon	O-Ring Material	Nitrile
Dimensional Weight	0.5504 lb
