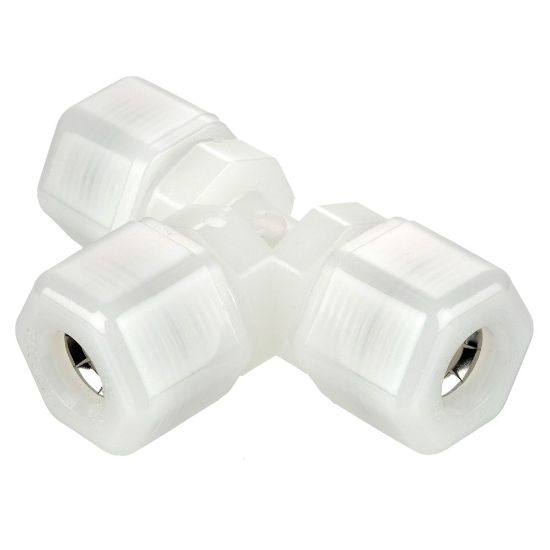

N4TU4 - Compression Style Plastic Fittings, Fast-Tite

Name: N4TU4 - Compression Style Plastic Fittings, Fast-Tite
SKU: N4TU4
Price: 5.21 USD
Availability: InStock

Parker's Fast & Tite fittings installs in seconds without tools for a leak proof seal. Fast & Tite meets FDA and NSF-51 requirements for food contact.

Manufacturer: Parker

Availability:

14 in stock

Olivette, MO	9
Wichita, KS	5

Partner Available:

47 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU N4TU4

$5.21/each

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Shape	Tee
Configuration	Tube to Tube	Connection 1 Type	Compression
Connection 2 Type	Compression	Connection 1 Tube Outside Diameter	1/4" (O.D.)
Connection 2 Tube Outside Diameter	1/4" (O.D.)	Body Material	Nylon
Body Material	Nylon	Maximum Operating Pressure	300 psi
O-Ring Material	Nitrile	Gripping Ring Material	302 Stainless Steel
Maximum Operating Temperature	93 °C	Division	Fluid System Connectors Division
Minimum Operating Temperature	-40 °C	Tube Material	Thermoplastic, Glass, Soft Metal
Media	Water, Air, Other Compatible Fluids	Dimensional Weight	0.5504 lb
Application	Filtration, Purification, Dispensing	Specifications Met	FDA, NSF-51
