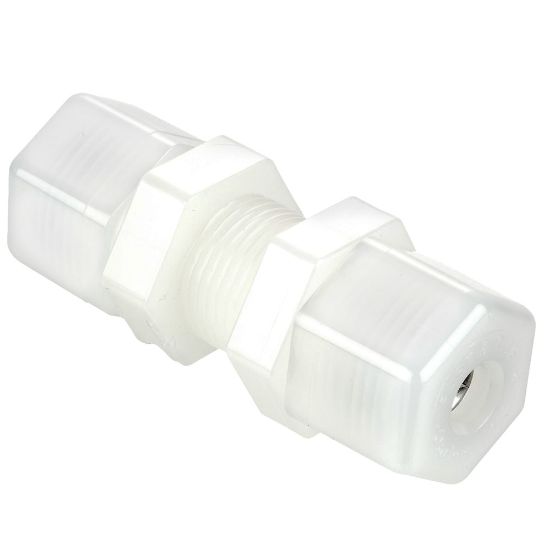

N6BU6 - Compression Style Plastic Fittings, Fast-Tite

Parker's Fast & Tite fittings installs in seconds without tools for a leak proof seal. Fast & Tite meets FDA and NSF-51 requirements for food contact.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	11 in stock

SKU N6BU6

$11.87/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Configuration	Tube to Tube
Connection 1 Type	Compression	Connection 2 Type	Compression
Connection 1 Tube Outside Diameter	3/8" (O.D.)	Connection 2 Tube Outside Diameter	3/8" (O.D.)
Product Style	Bulkhead	Body Material	Nylon
Maximum Operating Temperature	93 °C	Division	Fluid System Connectors Division
Media	Water, Air, Other Compatible Fluids	Tube Material	Thermoplastic, Glass, Soft Metal
Gripping Ring Material	302 Stainless Steel	Application	Filtration, Purification, Dispensing
Specifications Met	FDA, NSF-51	Minimum Operating Temperature	-40 °F
Body Material	Nylon	Maximum Operating Pressure	300 psi
O-Ring Material	Nitrile
