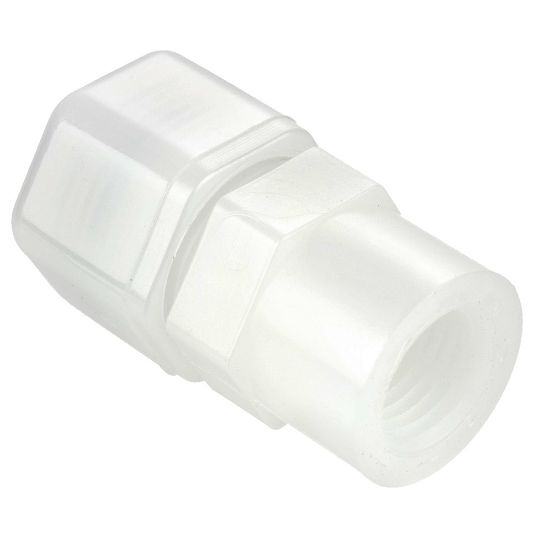

N6FC8 - Compression Style Plastic Fittings, Fast-Tite

Parker's Fast & Tite fittings installs in seconds without tools for a leak proof seal. Fast & Tite meets FDA and NSF-51 requirements for food contact.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	9 in stock

SKU N6FC8

$6.10/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Product Style	Connector
Connection 2 Thread Size	1/2"	Connection 1 Type	Compression
Connection 1 Tube Outside Diameter	3/8" (O.D.)	Configuration	Tube to Female Pipe
Connection 2 Type	NPTF	Body Material	Nylon
Application	Dispensing	Specifications Met	NSF 51
Minimum Operating Temperature	-40 °C	Body Material	Nylon
Maximum Operating Pressure	10 bar	Gripping Ring Material	Stainless Steel AISI 302
Seal Material	Nitrile (O-Ring)	Maximum Operating Temperature	200 °F
For Fluid Type	Air	Division	Fluid System Connectors Division
Tube Material	Thermoplastic
