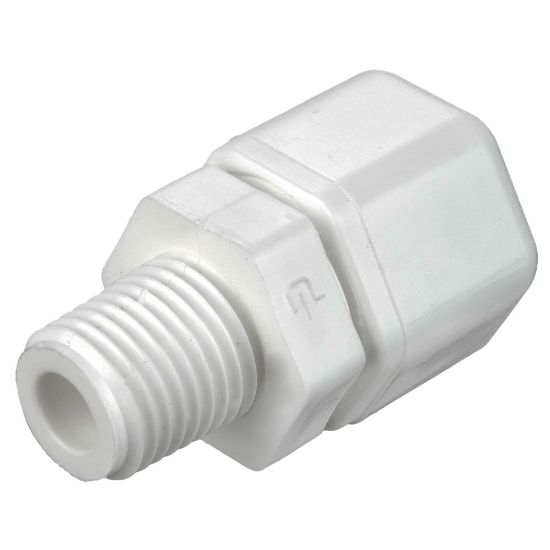

W4MC6 - Compression Style Plastic Fittings, Fast-Tite

Parker's Fast & Tite fittings installs in seconds without tools for a leak proof seal. Fast & Tite meets FDA and NSF-51 requirements for food contact.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 20 days
Partner Available:	Backordered

SKU W4MC6

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 1 Tube Outside Diameter	1/4" (O.D.)
Body Material	White Polypropylene	Connection 2 Thread Size	3/8"
Configuration	Tube to Pipe	Product Style	Connector
Connection 1 Type	Compression	Connection 2 Type	NPTF
Division	Fluid System Connectors Division	Maximum Operating Temperature	100 °C
For Fluid Type	Other Compatible Fluids	Tube Material	Soft Metal
Seal Material	Nitrile (O-Ring)	Gripping Ring Material	Stainless Steel AISI 302
Application	Purification	Specifications Met	FDA
Minimum Operating Temperature	-18 °C	Maximum Operating Pressure	300 psi
Body Material	Polypropylene
