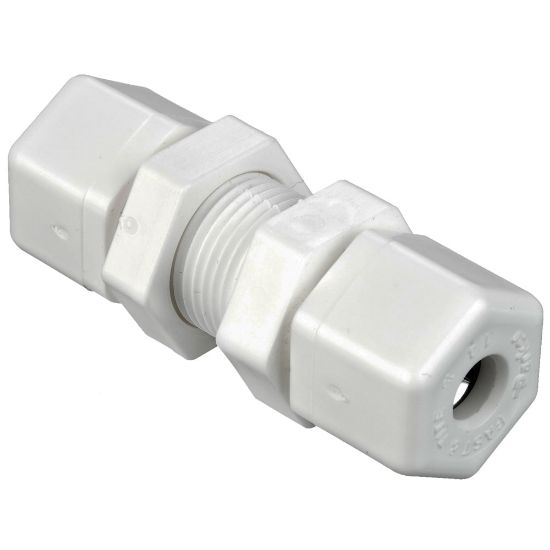

W6BU6 - Compression Style Plastic Fittings, Fast-Tite

Parker's Fast & Tite fittings installs in seconds without tools for a leak proof seal. Fast & Tite meets FDA and NSF-51 requirements for food contact.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 23 days
Partner Available:	4 in stock

SKU W6BU6

Products specifications

Attribute name	Attribute value
UOM	EA	Product Style	Bulkhead
Connection 1 Tube Outside Diameter	3/8" (O.D.)	Configuration	Tube to Tube
Connection 1 Type	Compression	Body Material	White Polypropylene
Connection 2 Type	Compression	Connection 2 Tube Outside Diameter	3/8" (O.D.)
Specifications Met	FDA, NSF-51	Minimum Operating Temperature	0 °F
O-Ring Material	Nitrile	Body Material	Polypropylene
Maximum Operating Pressure	150 psi	Application	Filtration, Purification, Dispensing
Division	Fluid System Connectors Division	Media	Water, Air, Other Compatible Fluids
Tube Material	Thermoplastic, Glass, Soft Metal	Maximum Operating Temperature	212 °F
Gripping Ring Material	302 Stainless Steel
