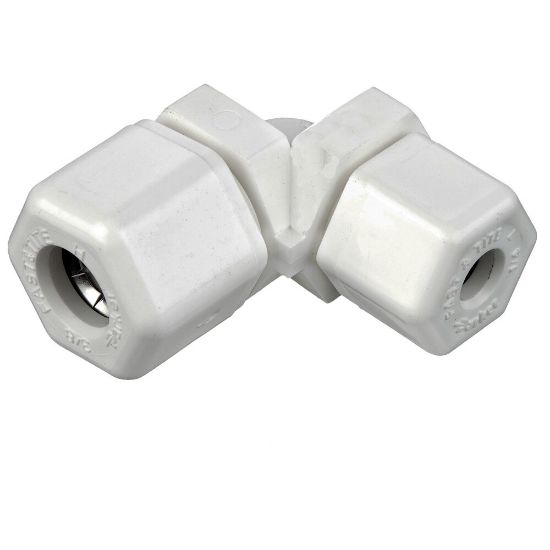

W8EU8 - Compression Style Plastic Fittings, Fast-Tite

Parker's Fast & Tite fittings installs in seconds without tools for a leak proof seal. Fast & Tite meets FDA and NSF-51 requirements for food contact.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 23 days
Partner Available:	15 in stock

SKU W8EU8

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 2 Type	Compression
Connection 1 Tube Outside Diameter	1/2" (O.D.)	Configuration	Tube to Tube
Shape	Elbow 90°	Body Material	White Polypropylene
Connection 2 Tube Outside Diameter	1/2" (O.D.)	Connection 1 Type	Compression
Maximum Operating Temperature	100 °C	Gripping Ring Material	302 Stainless Steel
Division	Fluid System Connectors Division	Media	Water, Air, Other Compatible Fluids
Tube Material	Thermoplastic, Glass, Soft Metal	Application	Filtration, Purification, Dispensing
Specifications Met	FDA, NSF-51	Minimum Operating Temperature	-18 °C
Maximum Operating Pressure	150 psi	Body Material	Polypropylene
O-Ring Material	Nitrile
