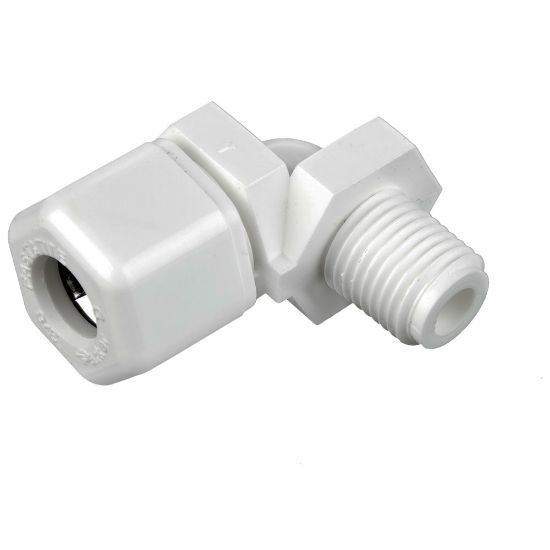

W8ME8 - Compression Style Plastic Fittings, Fast-Tite

Parker's Fast & Tite fittings installs in seconds without tools for a leak proof seal. Fast & Tite meets FDA and NSF-51 requirements for food contact.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 23 days
Partner Available:	Backordered

SKU W8ME8

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 1 Type	Compression
Connection 2 Thread Size	1/2"	Connection 2 Type	NPTF
Connection 1 Tube Outside Diameter	1/2" (O.D.)	Body Material	White Polypropylene
Configuration	Tube to Pipe	Shape	Elbow 90°
Application	Purification	Specifications Met	NSF 51
Minimum Operating Temperature	0 °F	Body Material	Polypropylene
Maximum Operating Pressure	150 psi	Seal Material	Nitrile (O-Ring)
Gripping Ring Material	Stainless Steel AISI 302	Maximum Operating Temperature	100 °C
For Fluid Type	Other Compatible Fluids	Division	Fluid System Connectors Division
Tube Material	Thermoplastic
