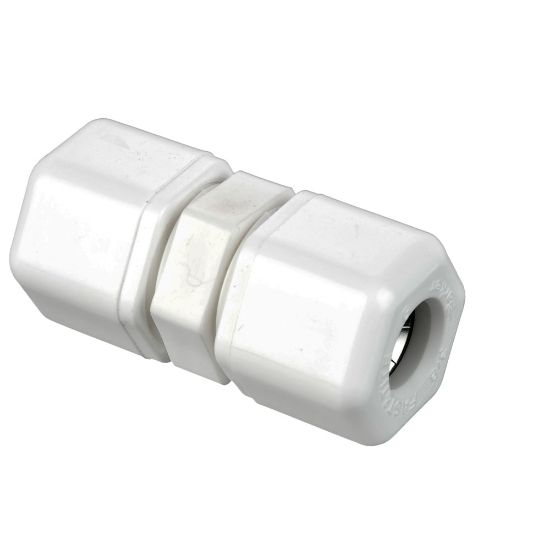

W8UC8 - Compression Style Plastic Fittings, Fast-Tite

Parker's Fast & Tite fittings installs in seconds without tools for a leak proof seal. Fast & Tite meets FDA and NSF-51 requirements for food contact.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 23 days
Partner Available:	Backordered

SKU W8UC8

Products specifications

Attribute name	Attribute value
UOM	EA	Configuration	Tube to Tube
Shape	Union	Connection 1 Type	Compression
Connection 2 Type	Compression	Connection 1 Tube Outside Diameter	1/2" (O.D.)
Connection 2 Tube Outside Diameter	1/2" (O.D.)	Body Material	White Polypropylene
Division	Fluid System Connectors Division	Body Material	Polypropylene
Tube Material	Thermoplastic, Glass, Soft Metal	Media	Water, Air, Other Compatible Fluids
Gripping Ring Material	302 Stainless Steel	Maximum Operating Temperature	100 °C
Minimum Operating Temperature	0 °F	O-Ring Material	Nitrile
Maximum Operating Pressure	150 psi	Application	Filtration, Purification, Dispensing
Specifications Met	FDA, NSF-51
