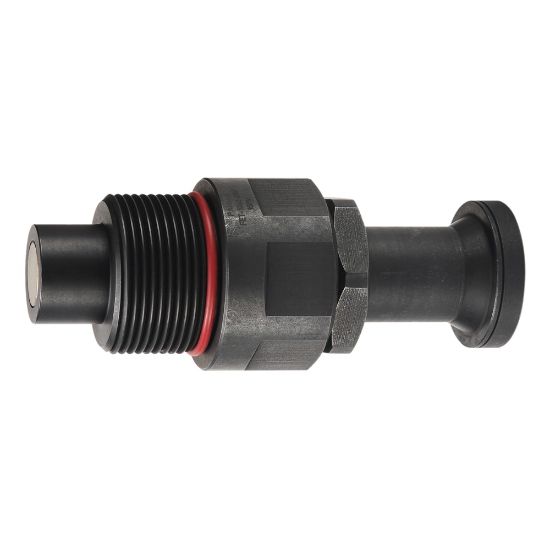

FET-1502-24SFP - Connect under Pressure, Heavy Duty, Hydraulic Flat Face Quick Couplings - FET Series

Parker's FNC coated, steel high-pressure, non-spill, screw to connect hydraulic couplers can connect under pressure for use in heavy duty, high impulse hydraulic applications where fluid lines require fast and easy connection and disconnection.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	Backordered

SKU FET-1502-24SFP

$862.06/each

Products specifications

Attribute name	Attribute value
UOM	EA	Connection Thread Size (inch)	na
Connection Type	Code 62 Flange pad	Coupling Half	Male Nipple
Body Size (inch)	1 1/2	Body Material	Steel
Maximum Operating Pressure	5000	Dimensional Weight	0.4134496402877698 lb
Body Material	Steel	Hex Size 2	2-5/8 inch
Plating Type	Black FNC Coating	Minimum Operating Temperature	-40 °F
Hex Size 1	75 mm	Application	High Impulse Hydraulics
Maximum Operating Temperature	250 °F	Seal Material	Polyurethane/Nitrile
Product Type	Thread to Connect	Valve Type	Non-spill
Division	Quick Coupling Division

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
