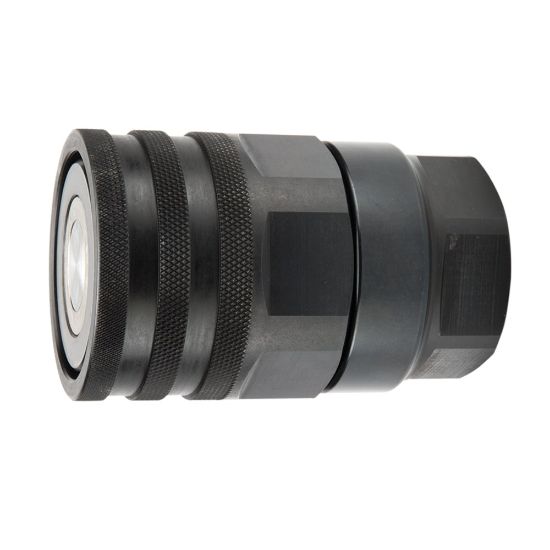

FET-371-8FP - Connect under Pressure, Heavy Duty, Hydraulic Flat Face Quick Couplings - FET Series

Parker's FNC coated, steel high-pressure, non-spill, screw to connect hydraulic couplers can connect under pressure for use in heavy duty, high impulse hydraulic applications where fluid lines require fast and easy connection and disconnection.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 28 days
Partner Available:	9 in stock

SKU FET-371-8FP

$192.10/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Body Material	Steel
Maximum Operating Pressure	6000	Connection Type	Female NPTF
Body Size (inch)	3/8	Connection Thread Size (inch)	1/2 - 14
Coupling Half	Female Coupler	Seal Material	Polyurethane/Nitrile
Product Type	Thread to Connect	Plating Type	Black FNC Coating
Maximum Operating Temperature	250 °F	Valve Type	Non-spill
Division	Quick Coupling Division	Dimensional Weight	0.12464028776978417 lb
Body Material	Steel	Hex Size 1	38 mm
Hex Size 2	30 mm	Minimum Operating Temperature	-40 °F
Application	High Pressure Hydraulics
