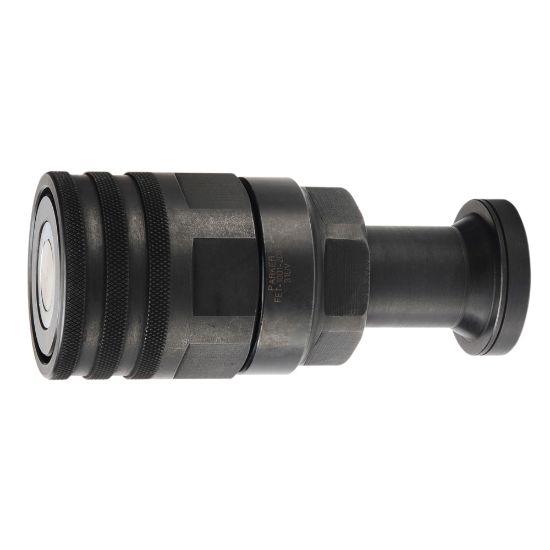

FET-751-16SF - Connect under Pressure, Heavy Duty, Hydraulic Flat Face Quick Couplings - FET Series

Name: FET-751-16SF - Connect under Pressure, Heavy Duty, Hydraulic Flat Face Quick Couplings - FET Series
SKU: FET-751-16SF
Price: 309.48 USD
Availability: LimitedAvailability

Parker's FNC coated, steel high-pressure, non-spill, screw to connect hydraulic couplers can connect under pressure for use in heavy duty, high impulse hydraulic applications where fluid lines require fast and easy connection and disconnection.

Manufacturer: Parker

Availability:

1 Limited Stock

Peoria, IL

Partner Available:

Backordered

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU FET-751-16SF

$309.48/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Coupling Half	Female Coupler
Connection Thread Size (inch)	na	Connection Type	Code 62 Flange head
Body Material	Steel	Body Size (inch)	3/4
Maximum Operating Pressure	6000	Dimensional Weight	0.18081151079136693 lb
Body Material	Steel	Plating Type	Black FNC Coating
Minimum Operating Temperature	-40 °F	Hex Size 2	2 inch
Application	High Pressure Hydraulics	Hex Size 1	55 mm
Seal Material	Polyurethane/Nitrile	Maximum Operating Temperature	250 °F
Product Type	Thread to Connect	Division	Quick Coupling Division
Valve Type	Non-spill

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
