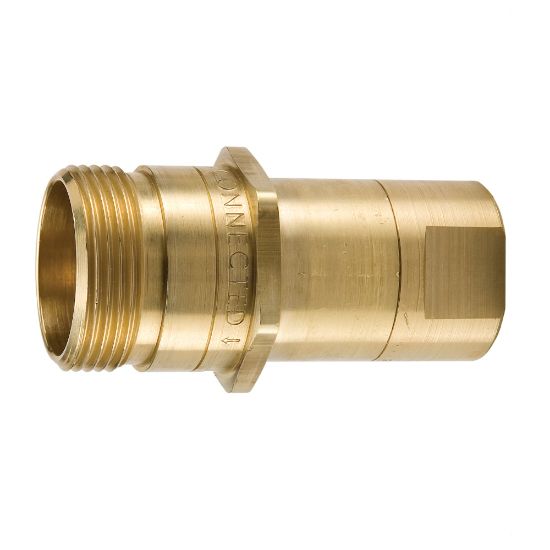

6105-08 - Connect Under Pressure, High Flow Quick Couplings - 6100 Series

Name: 6105-08 - Connect Under Pressure, High Flow Quick Couplings - 6100 Series
SKU: 6105-08
Price: 101.51 USD
Availability: LimitedAvailability

Parker's low spill thread to connect couplers and nipples, wing nut or hex nut style, are ideal for use in applications where a high flow flush valve and connect under pressure is needed.

Manufacturer: Parker

Availability:

3 in stock

Kansas City, KS	1
WICHITA, KS	1
Springfield, MO	1

Partner Available:

133 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 6105-08

$101.51/each

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Coupling Half	Male Nipple
Connection Thread Size (inch)	1/2 - 14	Body Size	3/4 Inch
Sleeve Type	na	Minimum Operating Temperature	-40 °F
Hex Size 2	1.62 inch	Hex Size	1.18 inch
Application	Hydraulics	Dimensional Weight	0.31160071942446044 lb
Flow Rate	12 Gal/min	Maximum Operating Pressure	3000 psi
Body Material	Brass	Valve Type	Flat Face
Connection Type	Female NPTF	Division	Quick Coupling Division
Seal Material	Nitrile	Maximum Operating Temperature	250 °F
Product Type	Thread to Connect

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
