Picture of 6105-12 - Connect Under Pressure, High Flow Quick Couplings - 6100 Series

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

6105-12 - Connect Under Pressure, High Flow Quick Couplings - 6100 Series

Parker's low spill thread to connect couplers and nipples, wing nut or hex nut style, are ideal for use in applications where a high flow flush valve and connect under pressure is needed.
Manufacturer: Parker
Availability:
15 in stock
Olivette, MO2
WICHITA, KS2
Springfield, MO2
COLUMBIA, MO2
Kansas City, KS2
Joplin, MO2
Peoria, IL2
Olivette, MO1
Partner Available:458 in stock
Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.
SKU 6105-12
$84.68/each
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEACoupling HalfMale Nipple
Connection Thread Size (inch)3/4 - 14Body Size3/4 Inch
Sleeve TypenaDimensional Weight0.15995203836930455 lb
Flow Rate28 Gal/minMaximum Operating Pressure3000 psi
Body MaterialBrassDivisionQuick Coupling Division
Connection TypeFemale NPTFValve TypeFlat Face
Maximum Operating Temperature250 °FSeal MaterialNitrile
Product TypeThread to ConnectMinimum Operating Temperature-40 °F
Hex Size 21.62 inchHex Size1.18 inch
ApplicationConnect Under Pressure
Customers who bought this item also bought

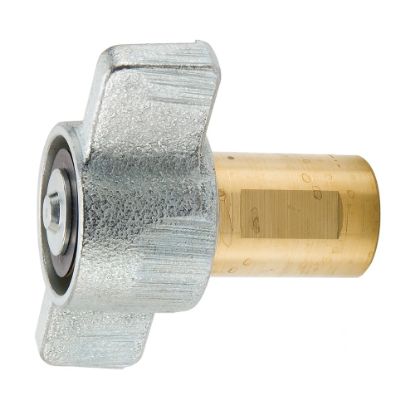

Picture of 6125-12 - Connect Under Pressure, High Flow Quick Couplings - 6100 Series

6125-12 - Connect Under Pressure, High Flow Quick Couplings - 6100 Series

Parker's low spill thread to connect couplers and nipples, wing nut or hex nut style, are ideal for use in applications where a high flow flush valve and connect under pressure is needed.
$125.04/each
