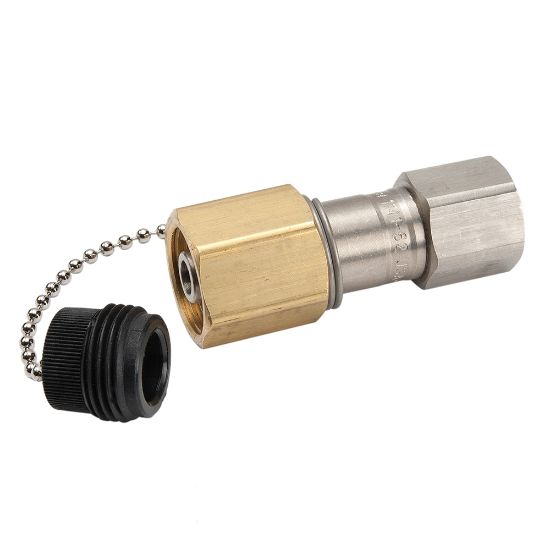

1141-62 - Connect Under Pressure Stainless Quick Couplings - 1141 Series

Parker's high pressure, connect under pressure 1/4" quick couplers and nipples are ideal for use in hydraulic applications where fluid lines require fast and easy connection and disconnection.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 12 days
Partner Available:	203 in stock

SKU 1141-62

$136.31/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Coupling Half	Female Coupler
Product Type	Thread to Connect	Minimum Operating Temperature	-30 °F
Hex Size	0.88	Application	High Pressure Hydraulics
Connection Thread Size	1/4"-18 inch	Maximum Operating Pressure	10000 psi
Body Material	Stainless Steel 303 with Brass Sleeve	Maximum Flow Rate	3 Gal/min
Valve Type	Poppet	Maximum Operating Temperature	180 °F
Connection Type	Female NPTF	Division	Quick Coupling Division
Seal Material	Polyurethane	Body Size	1/4 inch
