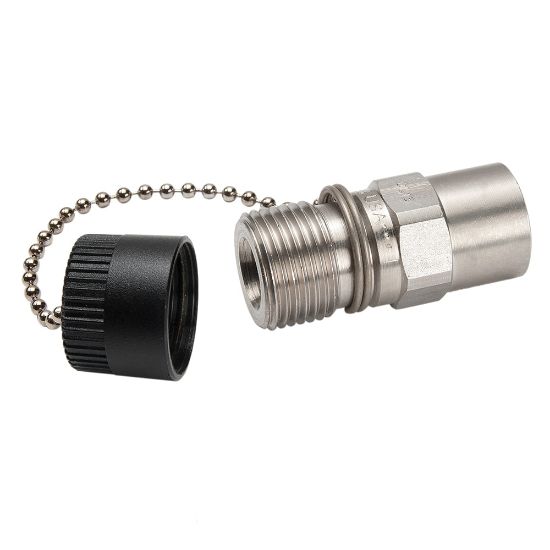

1141-63 - Connect Under Pressure Stainless Quick Couplings - 1141 Series

Parker's high pressure, connect under pressure 1/4" quick couplers and nipples are ideal for use in hydraulic applications where fluid lines require fast and easy connection and disconnection.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 12 days
Partner Available:	216 in stock

SKU 1141-63

$120.29/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Coupling Half	Male Nipple
Maximum Operating Temperature	180 °F	Body Size	1/4 inch
Seal Material	Polyurethane	Product Type	Thread to Connect
Hex Size	0.88	Minimum Operating Temperature	-30 °F
Application	High Pressure Hydraulics	Connection Thread Size	1/4"-18 inch
Body Material	Stainless Steel 303	Maximum Operating Pressure	10000 psi
Valve Type	Poppet	Connection Type	Female NPTF
Maximum Flow Rate	3 Gal/min	Division	Quick Coupling Division

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
