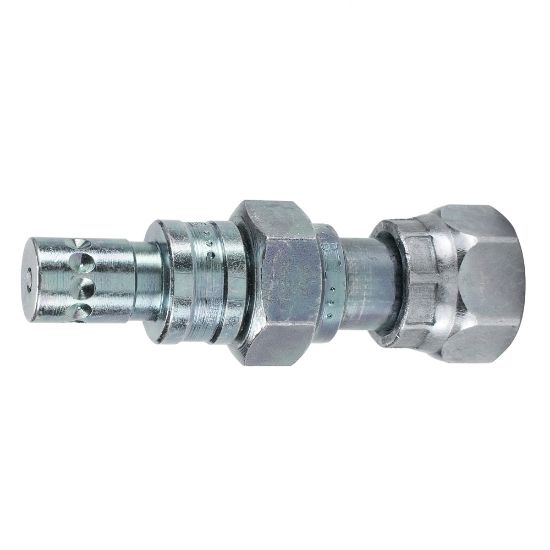

PDP36BTL - Connect Under Pressure, Test Port, Diagnostic Quick Couplings - PDP Series

Parker's diagnostic quick couplers and test point nipples provide easy connections for mechanical gauges or specialized diagnostic equipment including Parker's SensoControl meters and accessories.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 12 days
Partner Available:	Backordered

SKU PDP36BTL

$94.81/each

Products specifications

Attribute name	Attribute value
UOM	EA	Tube Size (inch)	3/8
Coupling Half	Male Nipple	Connection Type	Seal-Lok
Connection Thread Size (inch)	na	Product Type	Push to connect
Plating Type	Zinc with clear trivalent chromate	Valve Type	Ball
Division	Quick Coupling Division	Seal Material	Nitrile
Maximum Operating Temperature	250 °F	Body Size	1/8 inch
Maximum Operating Pressure	6000 psi	Body Material	Steel
Minimum Operating Temperature	-40 °F	Hex Size	0.81 inch
Application	Diagnostic
