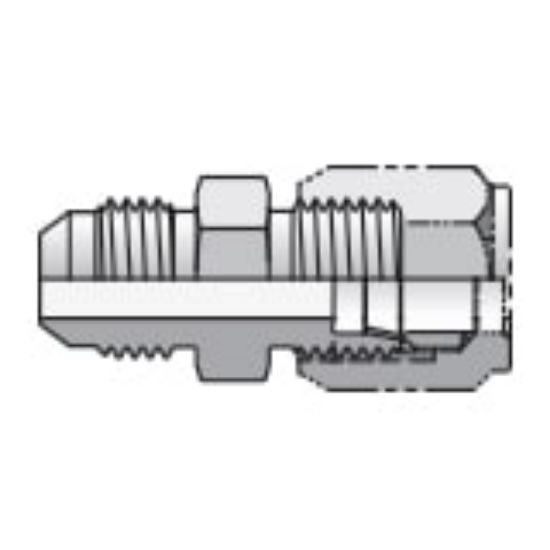

24 XHBU-S - Conversion Adapters for Tube and Hose Connections

Parker offers many different conversion adapters to support whatever tube or hose end conversion needed.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 38 days
Partner Available:	6 in stock

SKU 24 XHBU-S

$214.76/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Shape	Straight
Body Material	Steel	O-Ring Material	na
Connection 2 Style	Male Flareless Bite Type	Connection 1 Tube O.D. (mm)	na
Connection 1 Style	Male 37° Flare	Connection 1 Tube O.D. (inch)	1 1/2
Connection 2 Tube O.D. (inch)	1 1/2	Dimensional Weight	0.22473021582733813 lb
Body Material	Steel	Maximum Dynamic Pressure	2000 psi
Division	Tube Fittings Division	Connection Type	Conversion Adapter

Product resources

Compliance, Certifications & Safety

Lloyds Register Zertifikat LR2382868TA-Triple-Lok (PDF)

Literature and Reference Materials
