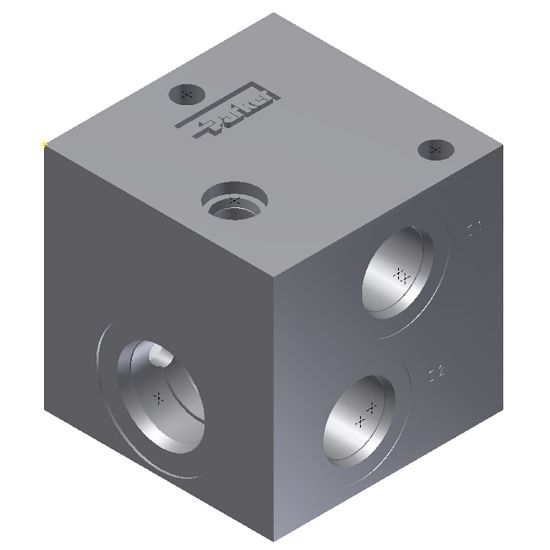

MHC-010-D-53 - Counterbalance Bodies

Parker’s custom bodies to be used specifically with Parker’s MHC-010 and MHC-022 counterbalance cartridge valves.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	Backordered

SKU MHC-010-D-53

$558.11/each

Products specifications

Attribute name	Attribute value
UOM	EA	Cavity Size	CDD-1010
Port Thread Size	5/8"	Maximum Operating Pressure	5000 psi
Body Material	Steel	Number of Cavities	Dual
Weight	4.1 lb	Flow Rate	Determined by Threaded Cartridge Valve installed in Line Body
Actuation Type	Determined by Threaded Cartridge Valve installed in Line Body	Maximum Flow Rate	Determined by Threaded Cartridge Valve installed in Line Body
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Maximum Operating Temperature	Determined by Threaded Cartridge Valve installed in Line Body
Division	Hydraulic Cartridge Systems Division	Division	Hydraulic Systems Division
Seal Material	Determined by Threaded Cartridge Valve installed in Line Body	Port Thread Size	5/8" Work, 3/8" Pilot
Number of Positions	3 way	Minimum Operating Temperature	Determined by Threaded Cartridge Valve installed in Line Body
Cavity Size	CDD-1010
