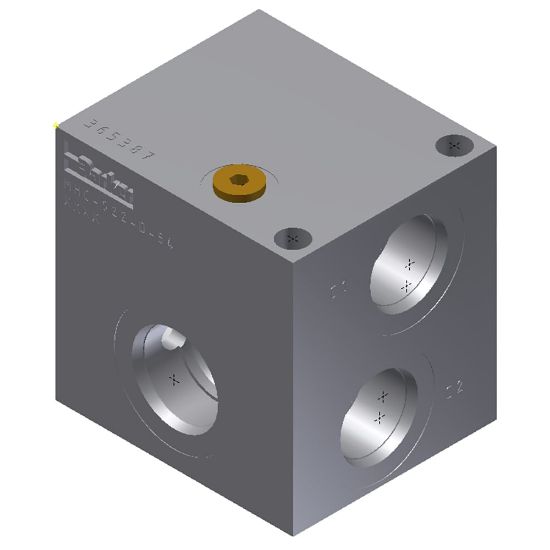

MHC-022-D-53 - Counterbalance Bodies

Parker’s custom bodies to be used specifically with Parker’s MHC-010 and MHC-022 counterbalance cartridge valves.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	Backordered

SKU MHC-022-D-53

$365.62/each

Products specifications

Attribute name	Attribute value
UOM	EA	Port Thread Size	5/8"
Cavity Size	CDD-1036	Actuation Type	Determined by Threaded Cartridge Valve installed in Line Body
Flow Rate	Determined by Threaded Cartridge Valve installed in Line Body	Port Thread Size	5/8" Work, 3/8" Pilot
Number of Positions	3 way	Division	Hydraulic Systems Division
Body Material	Steel	Maximum Operating Pressure	5000 psi
Weight	5.9 lb	Number of Cavities	Dual
Maximum Operating Temperature	Determined by Threaded Cartridge Valve installed in Line Body	Seal Material	Determined by Threaded Cartridge Valve installed in Line Body
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Maximum Flow Rate	Determined by Threaded Cartridge Valve installed in Line Body
Division	Hydraulic Cartridge Systems Division	Cavity Size	CDD-1036
Minimum Operating Temperature	Determined by Threaded Cartridge Valve installed in Line Body
