*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

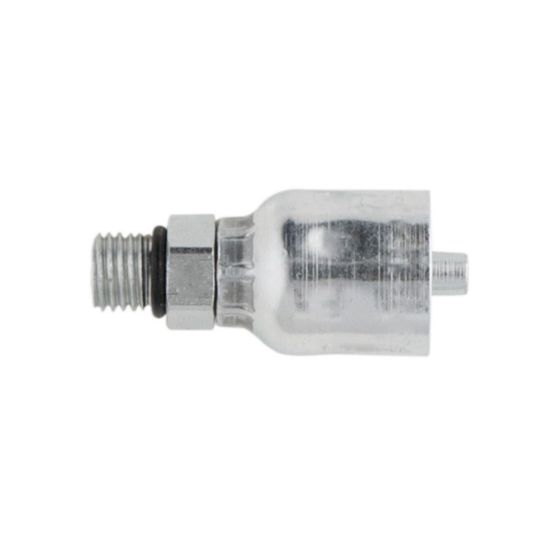

10543-10-8 - Crimp Style Hydraulic Hose Fitting - 43 Series Fittings

Name: 10543-10-8 - Crimp Style Hydraulic Hose Fitting - 43 Series Fittings
SKU: 10543-10-8
Price: 15.54 USD
Availability: InStock

Parker’s best-selling 43 Series crimp style hydraulic fittings are a complete range of cost-effective, permanent, crimp-style hydraulic hose fittings for use with the Parkrimp family of crimpers.

Manufacturer: Parker

Availability:

88 in stock

Olivette, MO	44
Decatur, IL	9
Springfield, MO	8
TOPEKA, KS	8
Wichita, KS	6
Kansas City, KS	6
Joplin, MO	4
Peoria, IL	3

Partner Available:

559 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 10543-10-8

$15.54/each

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Shape	Straight
Materials of Construction	Steel	Product Style	Male SAE Straight Thread with O-Ring - Rigid
Port Connection	5/8"	Hose I.D. (size)	-8
Hex Type	Inch	Division	Hose Products Division
Port Size	5/8 inch	Product Style	Male SAE Straight Thread with O-Ring - Rigid
Shape	Straight	Disclaimer	The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met. The u
Flange Size	n/a	Nut Hex Size	n/a
Connection Size	7/8"-14 inch Thread	Back-Up Hex Size	n/a
Banjo Port Diameter	n/a	Hose Inside Diameter	1/2 inch
Materials of Construction	Steel

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Safety Guide--B.1 (PDF)
