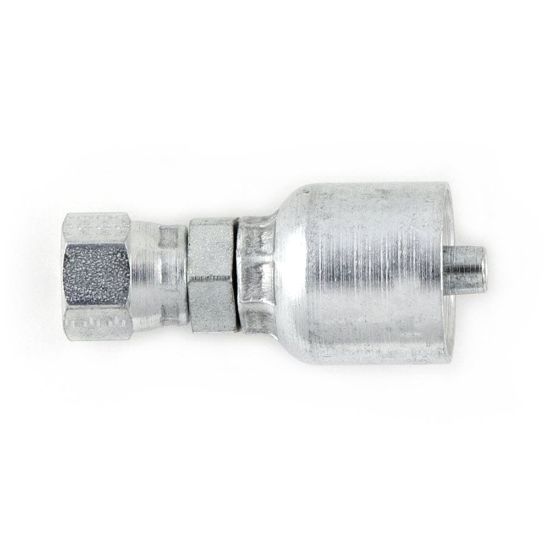

10643-4-4C - Crimp Style Hydraulic Hose Fitting - 43 Series Fittings

Name: 10643-4-4C - Crimp Style Hydraulic Hose Fitting - 43 Series Fittings
SKU: 10643-4-4C
Price: 55.33 USD
Availability: InStock

Parker’s best-selling 43 Series crimp style hydraulic fittings are a complete range of cost-effective, permanent, crimp-style hydraulic hose fittings for use with the Parkrimp family of crimpers.

Manufacturer: Parker

Availability:

4 in stock

Kansas City, KS

Partner Available:

1143 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 10643-4-4C

$55.33/each

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Shape	Straight
Port Connection	1/4"	Materials of Construction	Stainless Steel
Product Style	Female JIC 37° - Swivel	Hose I.D. (size)	-4
Hex Type	Inch	Flange Size	n/a
Product Style	Female JIC 37° - Swivel	Materials of Construction	Stainless Steel
Back-Up Hex Size	9/16 inch	Banjo Port Diameter	n/a
Shape	Straight	Nut Hex Size	14 mm
Division	Hose Products Division	Disclaimer	The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met. The u
Connection Size	7/16"-20 inch Thread	Port Size	1/4 inch
Hose Inside Diameter	1/4 inch

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Safety Guide--B.1 (PDF)
