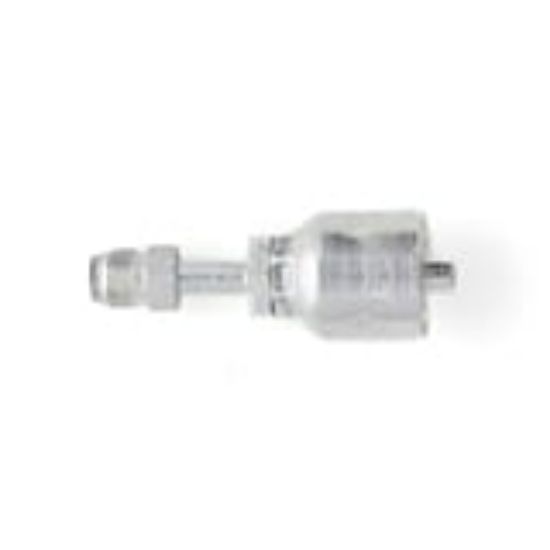

12843-5-4 - Crimp Style Hydraulic Hose Fitting - 43 Series Fittings

Parker’s best-selling 43 Series crimp style hydraulic fittings are a complete range of cost-effective, permanent, crimp-style hydraulic hose fittings for use with the Parkrimp family of crimpers.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 19 days
Partner Available:	169 in stock

SKU 12843-5-4

$24.29/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Shape	Straight
Materials of Construction	Steel	Hose I.D. (size)	-4
Hex Type	Inch	Port Connection	5/16"
Product Style	Male Inverted SAE 45° - Swivel	Hose I.D. (size)	-4
Nut Hex Size	12 mm	Shape	Straight
Division	Hose Products Division	Banjo Port Diameter	n/a
Disclaimer	The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met. The u	Hose Inside Diameter	1/4 inch
Connection Size	1/2"-20 inch Thread	Port Size	5/16 inch
Product Style	Male Inverted SAE 45° - Swivel	Back-Up Hex Size	14 mm
Flange Size	n/a	Materials of Construction	Steel

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Safety Guide--B.1 (PDF)
