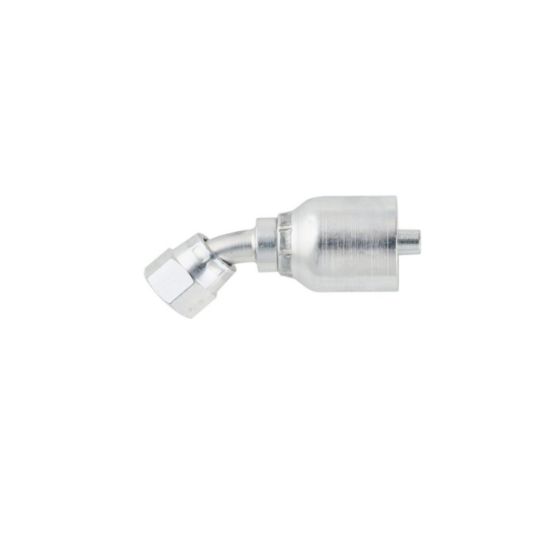

13743-16-16 - Crimp Style Hydraulic Hose Fitting - 43 Series Fittings

Name: 13743-16-16 - Crimp Style Hydraulic Hose Fitting - 43 Series Fittings
SKU: 13743-16-16
Price: 60.18 USD
Availability: InStock

Parker’s best-selling 43 Series crimp style hydraulic fittings are a complete range of cost-effective, permanent, crimp-style hydraulic hose fittings for use with the Parkrimp family of crimpers.

Manufacturer: Parker

Availability:

180 in stock

Springfield, MO	57
Wichita, KS	49
Peoria, IL	29
Olivette, MO	13
TOPEKA, KS	8
Kansas City, KS	7
COLUMBIA, MO	6
Joplin, MO	6
Decatur, IL	5

Partner Available:

1181 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 13743-16-16

$60.18/each

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Materials of Construction	Steel
Port Connection	1"	Product Style	Female JIC 37° - Swivel
Hose I.D. (size)	-16	Hex Type	Inch
Shape	Elbow 45° - Short Drop	Flange Size	n/a
Back-Up Hex Size	n/a	Product Style	Female JIC 37° - Swivel
Shape	Elbow 45° Short Drop	Materials of Construction	Steel
Division	Hose Products Division	Banjo Port Diameter	n/a
Nut Hex Size	38 mm	Connection Size	1-5/16"-12 inch Thread
Port Size	1 inch	Hose Inside Diameter	-16 (Size)
Disclaimer	The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met. The u

Product resources

Compliance, Certifications & Safety

Safety Guide--B.1 (PDF)

Literature and Reference Materials
