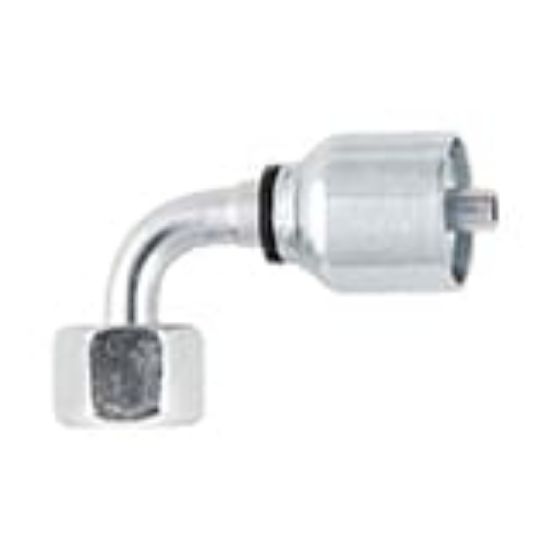

1B243-10-8 - Crimp Style Hydraulic Hose Fitting - 43 Series Fittings

Parker’s best-selling 43 Series crimp style hydraulic fittings are a complete range of cost-effective, permanent, crimp-style hydraulic hose fittings for use with the Parkrimp family of crimpers.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 19 days
Partner Available:	47 in stock

SKU 1B243-10-8

$106.81/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Materials of Construction	Steel
Port Connection	5/8"	Hose I.D. (size)	-8
Hex Type	Metric	Shape	Elbow 90°
Product Style	Female BSP Parallel Pipe - Swivel (60° Cone)	Division	Hose Products Division
Port Size	5/8 inch	Product Style	Female BSP Parallel Pipe - Swivel - (60° Cone)
Shape	Elbow 90°	Disclaimer	The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met. The u
Flange Size	n/a	Nut Hex Size	30 mm
Connection Size	n/a	Back-Up Hex Size	n/a
Banjo Port Diameter	n/a	Hose Inside Diameter	-8 (Size)
Materials of Construction	Steel
