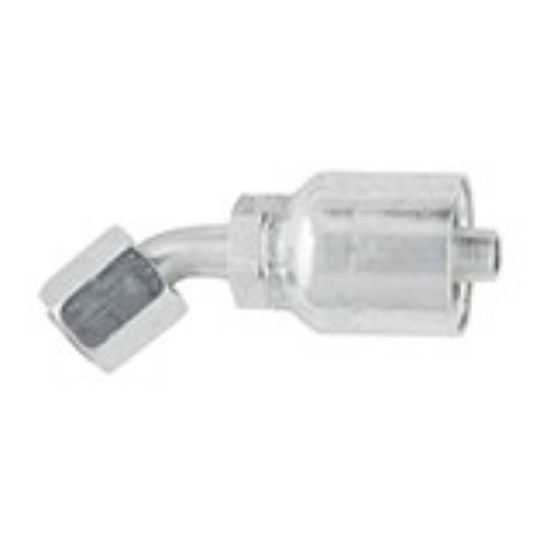

1L743-12-12 - Crimp Style Hydraulic Hose Fitting - 43 Series Fittings

Parker’s best-selling 43 Series crimp style hydraulic fittings are a complete range of cost-effective, permanent, crimp-style hydraulic hose fittings for use with the Parkrimp family of crimpers.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 19 days
Partner Available:	47 in stock

SKU 1L743-12-12

$82.53/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Materials of Construction	Steel
Port Connection	3/4"	Product Style	Female JIC 37° - Swivel
Hose I.D. (size)	-12	Hex Type	Inch
Shape	Elbow 45° - Medium Drop	Disclaimer	The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met. The u
Division	Hose Products Division	Connection Size	1-1/16"-12 inch Thread
Port Size	3/4 inch	Hose Inside Diameter	3/4 inch
Materials of Construction	Steel	Flange Size	n/a
Product Style	Female JIC 37° - Swivel	Back-Up Hex Size	n/a
Banjo Port Diameter	n/a	Nut Hex Size	1-1/4 inch
Shape	Elbow 45° Medium Drop
