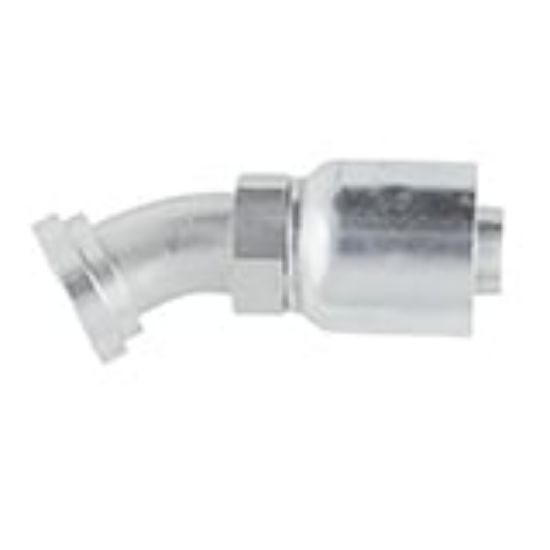

12671-16-16 - Crimp Style Hydraulic Hose Fitting – 71 Series Fittings

Parker's 71 series fittings are cost effective, permanent, bite the wire style fittings made for easy and quick assembly using our family of Parkrimp crimpers.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 21 days
Partner Available:	14 in stock

SKU 12671-16-16

Products specifications

Attribute name	Attribute value
UOM	EA	Hose I.D. (inch)	1"
Port Connection	1"	Product Style	SAE Code 61 Flange Head
Flange Size	1"	Shape	Elbow 30°
Division	Hose Products Division	Hose Inside Diameter	1 inch
Connection Size	n/a	Port Size	1 inch
Product Style	SAE Code 61 Flange Head	Flange Size	1 inch
Materials of Construction	Steel	Connection Thread Size	na

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
