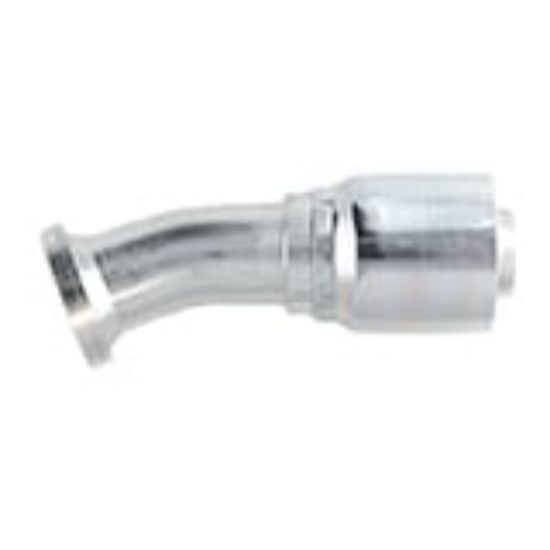

16B77-32-32 - Crimp Style Hydraulic Hose Fitting – 77 Series Fittings

Parker’s 77 Series high-pressure hydraulic hose fittings deliver high performance, quick assembly and the design flexibility of more than 500 configurations.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 36 days
Partner Available:	Backordered

SKU 16B77-32-32

$265.29/each

Products specifications

Attribute name	Attribute value
UOM	EA	Materials of Construction	Steel
Hose I.D. (inch)	2"	Port Connection	2"
Shape	Elbow 22-1/2°	Product Style	SAE Code 62 Flange Head
Materials of Construction	Steel	Back-Up Hex Size	n/a
Flange Size	2 inch	Product Style	SAE Code 62 Flange Head
Shape	Elbow 22.5°	Nut Hex Size	n/a
Banjo Port Diameter	n/a	Division	Hose Products Division
Connection Size	n/a	Port Size	2 inch
Hose Inside Diameter	-32 (Size)

Product resources

Compliance, Certifications & Safety

Safety Guide--B.1 (PDF)

Literature and Reference Materials
