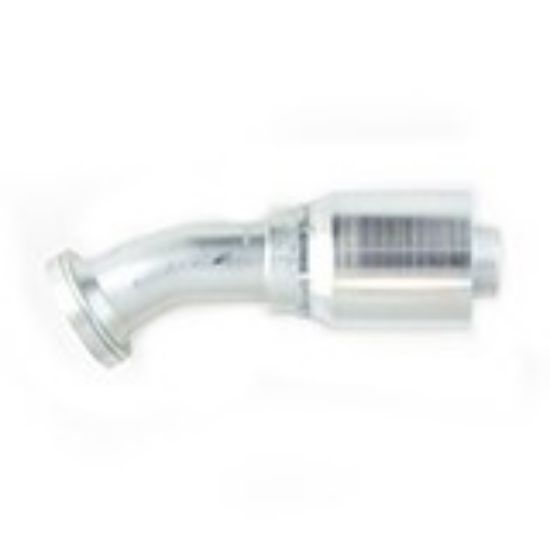

16E77-20-20 - Crimp Style Hydraulic Hose Fitting – 77 Series Fittings

Parker’s 77 Series high-pressure hydraulic hose fittings deliver high performance, quick assembly and the design flexibility of more than 500 configurations.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 19 days
Partner Available:	10 in stock

SKU 16E77-20-20

$250.73/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Materials of Construction	Steel
Hose I.D. (inch)	1-1/4"	Port Connection	1-1/4"
Shape	Elbow 30°	Product Style	SAE Code 62 Flange Head
Product Style	SAE Code 62 Flange Head	Port Size	1-1/4
Hose Inside Diameter	1-1/4	Materials of Construction	Steel
Flange Size	1-1/4	Back-Up Hex Size	n/a
Banjo Port Diameter	n/a	Shape	Elbow 30°
Nut Hex Size	n/a	Connection Size	n/a
Division	Hose Products Division

Product resources

Compliance, Certifications & Safety

Safety Guide--B.1 (PDF)

Literature and Reference Materials
