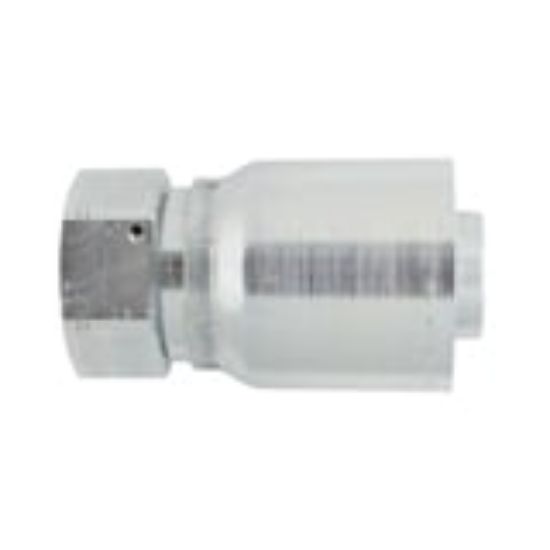

19277-12-12 - Crimp Style Hydraulic Hose Fitting – 77 Series Fittings

Name: 19277-12-12 - Crimp Style Hydraulic Hose Fitting – 77 Series Fittings
SKU: 19277-12-12
Price: 104.65 USD
Availability: InStock

Parker’s 77 Series high-pressure hydraulic hose fittings deliver high performance, quick assembly and the design flexibility of more than 500 configurations.

Manufacturer: Parker

Availability:

5 in stock

Springfield, MO	4
Olivette, MO	1

Partner Available:

35 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 19277-12-12

$104.65/each

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Materials of Construction	Steel
Hose I.D. (inch)	3/4"	Port Connection	3/4"
Shape	Straight (60° Cone)	Product Style	Female BSP Parallel Pipe - Swivel
Banjo Port Diameter	n/a	Nut Hex Size	32 mm
Shape	Straight	Division	Hose Products Division
Product Style	Female BSP Parallel Pipe - Swivel	Port Size	3/4 inch
Connection Size	3/4"-12 inch Thread	Hose Inside Diameter	-12 (Size)
Materials of Construction	Steel	Flange Size	n/a
Back-Up Hex Size	n/a
