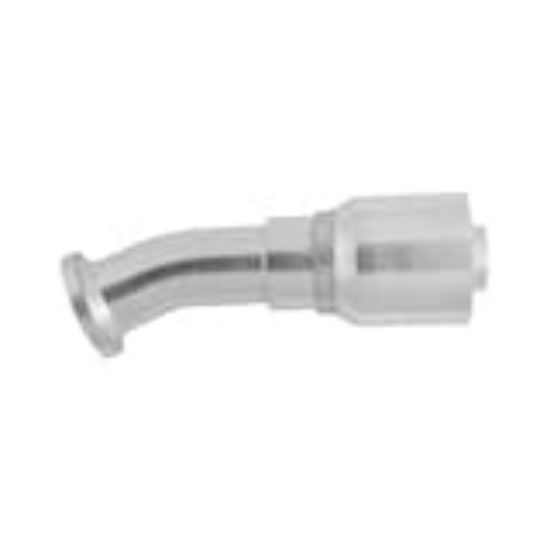

1K677-16-20 - Crimp Style Hydraulic Hose Fitting – 77 Series Fittings

Parker’s 77 Series high-pressure hydraulic hose fittings deliver high performance, quick assembly and the design flexibility of more than 500 configurations.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 36 days
Partner Available:	Backordered

SKU 1K677-16-20

$166.31/each

Products specifications

Attribute name	Attribute value
UOM	EA	Materials of Construction	Steel
Hose I.D. (inch)	1"	Port Connection	1-1/4"
Shape	Elbow 22-1/2°	Product Style	Komatsu Flange Head
Hose Inside Diameter	-20 (Size)	Port Size	1-1/4 inch
Connection Size	n/a	Back-Up Hex Size	n/a
Flange Size	1-1/4 inch	Materials of Construction	Steel
Product Style	Komatsu Flange Head	Shape	Elbow 22.5°
Division	Hose Products Division	Nut Hex Size	n/a
Banjo Port Diameter	n/a
