D111VW002C2NYW

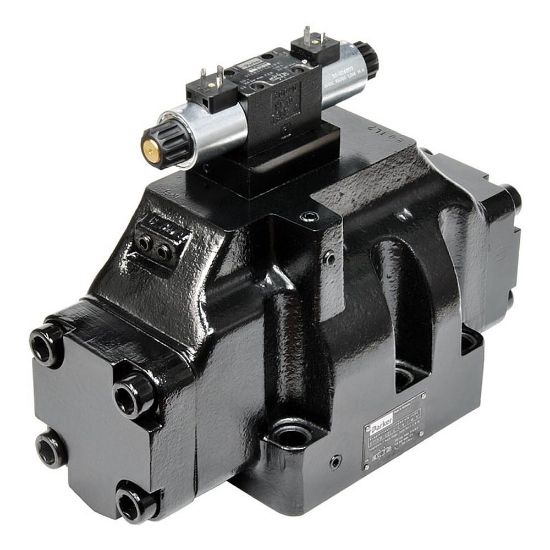

Parker D111VW002C2NYW | Directional Control Valve | Material Cast Iron | Connection Type Connector As Per EN 175301-803 | For Fluid Type Hydraulic Oil

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	Backordered

SKU D111VW002C2NYW

$7,315.20/each

Products specifications

Attribute name	Attribute value
UOM	EA	Pilot Inlet / Drain Locations	External
For Fluid Type	Hydraulic Oil	Material	Cast Iron
Operation Type	Pilot	Function	3-Way
Connection Type	Connector As Per En 175301-803	Maximum Flow Rate	2000 lpm
Port Connection	NG32 / CETOP 10	Minimum Operating Temperature	-25 °C
Bore Size	50 mm	Maximum Operating Temperature	60 °C
Marking	Standard	Seal Material	NBR
Actuation Type	Solenoid	Spool Code	'002
Solenoid Option	Standard Solenoid Without Options	Input Voltage	110/120 VAC, 50/60 Hz
Spool Position	3 Positions, Spring Offset In Position 0, Operated In Position A Or B	Product Series	Directional Control Valve
Mounting Option	Subplate
