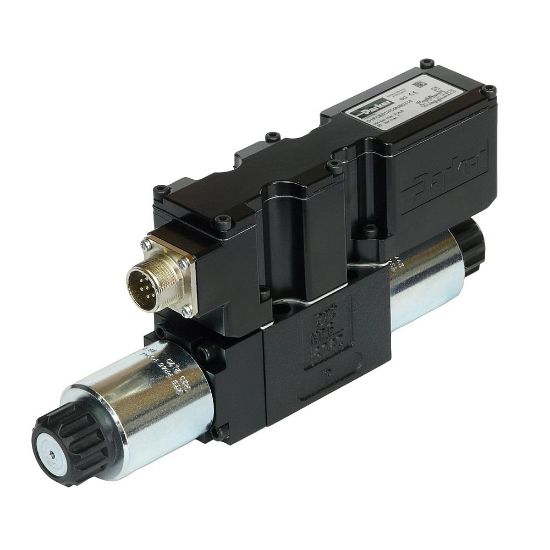

D1FCE01HC9NB73

Manufacturer: Parker

Availability:	Backordered
Partner Available:	Backordered

SKU D1FCE01HC9NB73

$4,633.00/each

Products specifications

Attribute name	Attribute value
UOM	EA	Filter Efficiency Rating	ISO 4406; 18/16/13
Flow Rate	20 lpm	Operation Type	Direct
Port Connection	NG06 / CETOP 03	Hysteresis	< 0.1 %
Material	Cast Iron	For Fluid Type	Hydraulic Oil
Signal Output	+10...0...-10 V	Variation of Opening Point	set to 10 % Command Signal
Leak Rate	<50 (Overlap Spool)	Connection Type	6 + Pe + Enable
Function	3-Way, 0 to 10 V = P-A	Spool Design	Spool/Body
Response Time	20 ms	Minimum Fluid Temperature	-25 °C
Minimum Ambient Temperature	-20 °C	Minimum Kinematic Viscosity	20 cSt
Defined Spool Position At Power Down	Center position	Mounting Option	Din 24340 / ISO 4401 / Cetop Rp121 / NFPA
Spool Type	Overlap	Maximum Ambient Temperature	60 °C
Maximum Kinematic Viscosity	400 cSt	Spool Code	E01, Equal Metering, 4-way, 3 Position, All Ports Open
Maximum Fluid Temperature	60 °C	Pressure Differential	5 Bar
Actuation Type	Proportional	IP Rating	IP65
Mounting Position	Unrestricted	Electronics Type	Onboard
Seal Material	NBR	Power Supply Voltage	18...30, Electric Shut-off at < 17, Ripple < 5 % eff., Surge Free V
Product Series	Proportional DC Valve	Marking	Standard
Signal Input	0 to ±10 V
