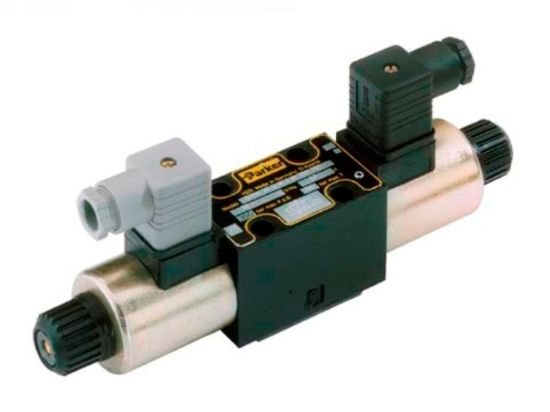

D1VW004CNYCF - D1VW Series - Double solenoid, 3 position, spring centered

Name: D1VW004CNYCF - D1VW Series - Double solenoid, 3 position, spring centered
SKU: D1VW004CNYCF
Price: 580.80 USD
Availability: LimitedAvailability

D1VW Series - Double solenoid, 3 position, spring centered - NFPA D03 (CETOP 3, NG 6)

Availability:

2 Limited Stock

Olivette, MO

Partner Available:

35 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU D1VW004CNYCF

$580.80/each

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Parker Spool Code	4
UOM	EA	Solenoid Voltage	120/60 - 110/50 VAC
Coil Option	Low Watt	Solenoid Connection	Conduit
Parker Valve Style Code	C	Max Flow (at 3000 PSI)	14 GPM (54 LPM)
Seals	Buna-N (Nitrile)	Pkg Qty	1
Spool Type	Float Center - P Blocked, A&B > T	Parker Group	Hydraulic
Parker Division	Hydraulic Valve	Operator Type	Solenoid
Series	D1VW	Max Pressure	5000 PSI (345 Bar)
Seals	Buna-N (Nitrile)	Solenoid Connection	Conduit
Solenoid Voltage	120/60 - 110/50 VAC	Parker Spool Code	4
Parker Valve Style Code	C	Spool Type	Float Center - P Blocked, A&B > T
Valve Style	Double solenoid, 3 position, spring centered	Subplate Pattern	NFPA D03 (CETOP 3, NG 6)
Max Flow (at 3000 PSI)	14 GPM (54 LPM)	Coil Option	Low Watt

Product resources

Solenoid Valves (PDF)
