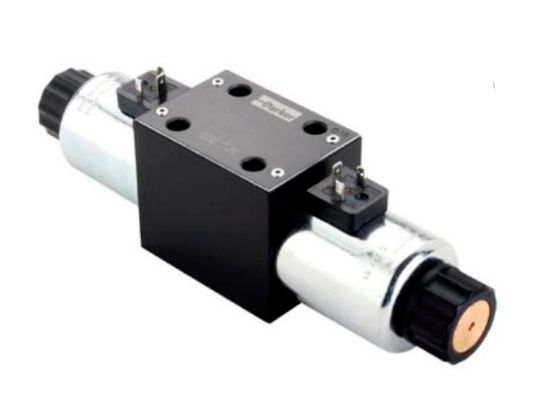

D3W008CNYC - D3W Series - Double solenoid, 3 position, spring centered

D3W Series - Double solenoid, 3 position, spring centered - NFPA D05 (CETOP 5, NG 10)

Availability:	Backordered Estimated Lead Time: 16 days
Partner Available:	15 in stock

SKU D3W008CNYC

$1,242.80/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Pkg Qty	1
Max Flow (at 3000 PSI)	25 GPM (96 LPM)	Parker Valve Style Code	C
Seals	Buna-N (Nitrile)	Spool Type	Tandem Center - P > T, A&B Blocked
Parker Spool Code	8	Solenoid Connection	Conduit
Solenoid Voltage	120/60 - 110/50 VAC	UOM	EA
Parker Group	Hydraulic	Parker Division	Hydraulic Valve
Operator Type	Solenoid	Max Pressure	5000 PSI (345 Bar)
Seals	Buna-N (Nitrile)	Solenoid Connection	Conduit
Solenoid Voltage	120/60 - 110/50 VAC	Parker Spool Code	8
Parker Valve Style Code	C	Spool Type	Tandem Center - P > T, A&B Blocked
Valve Style	Double solenoid, 3 position, spring centered	Series	D3W
Subplate Pattern	NFPA D05 (CETOP 5, NG 10)	Max Flow (at 3000 PSI)	25 GPM (96 LPM)

Product resources

Solenoid Valves (PDF)
