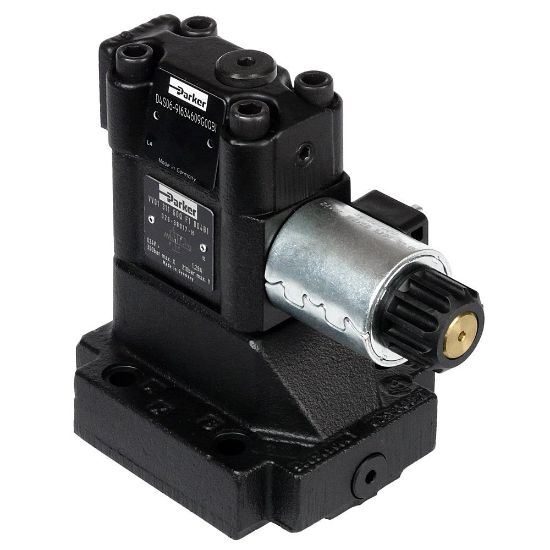

D4S1092234411W30B1

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 80 days
Partner Available:	Backordered

SKU D4S1092234411W30B1

$5,824.56/each

Products specifications

Attribute name	Attribute value
UOM	EA	Pilot Inlet	Pilot Line Body: External from X (A-X closed / B-Y open)
Maximum Flow Rate	600 lpm	Pilot Inlet / Drain Locations	Pilot line body: External from X (A-X closed / B-Y open)
For Fluid Type	Hydraulic Oil	Minimum Opening Pressure	A-B 3.5 bar, B-A 6.0 bar
Port Connection	NG32 / ISO 6264	Function	Vent Function Solenoid Activated, Unpressurized Circulation, with Manual Override.
Material	Cast Iron	Seal Material	NBR
Mounting Option	Subplate	Sleeve Type	AA=0.60 AC, AB=0.40 AC
Minimum Operating Temperature	-20 °C	Input Voltage	110/120 VAC, 50/60 Hz
Cover	Pilot line Cap: With Vent Function, External Pilot Drain From Cap, X Open, Y Open, Z Orifice 1.2, X-Y Closed, Y1 Open, VV01 Closed	Spool Type	Poppet with Closed Bottom, 45° Chamfer
Switching Option	Vent Function: Solenoid Activated, Unpressurized Circulation, with Manual Override	Maximum Operating Temperature	60 °C
Mounting Position	Unrestricted	Actuation Type	Pilot
Product Series	Check Valve
