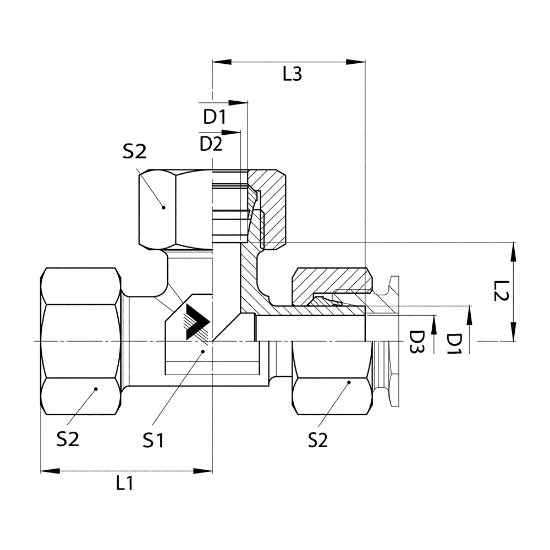

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

D6602-SP-S08-S08-S08-X

Manufacturer: Brennan

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU D6602-SP-S08-S08-S08-X

Products specifications

Attribute name	Attribute value
UOM	EA	Connection Specification 1	DIN 2353, ISO 8434-1
Type	Tee	Hex Size 1	19 MM
Standard	Prop-65 Warning	Weight	0.192 LB
Max. Dynamic Pressure	630 Bar	Series	D6602-SP-X
Connection Type	MBT-FMSP-MBT (Body Only)	Style	DIN Fitting
Material	Steel	Thread Size 2	M16 x 1.5
Overall Length 2	27.5 MM	Connection Specification 3	DIN 2353, ISO 8434-1
Overall Length 1	24 MM	Raw Material Type	Steel Forging
Thread Size 1	M16 x 1.5	End Type 1	Male Metric 24 Degree DIN Seat
Connection Specification 2	DIN 2353, ISO 8434-1	Plating	Zinc Nickel
End Type 2	Female Metric Standpipe DIN24D	End Type 3	Male Metric 24 Degree DIN Seat
Overall Length 3	17 MM	Tube Size 2	8 MM
Tube Size 1	8 MM	Tube Size 3	8 MM
Thread Size 3	M16 x 1.5	Body Hex	14 MM
