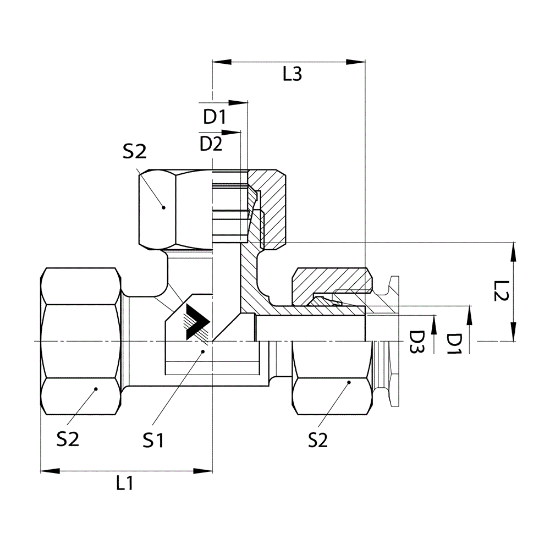

D6602-SP-S10-S10-S10

Manufacturer: Brennan

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU D6602-SP-S10-S10-S10

Products specifications

Attribute name	Attribute value
UOM	EA	Material	Steel
Series	D6602-SP	Standard	Prop-65 Warning
Connection Type	MBT-FMSP-MBT	Style	DIN Fitting
Thread Size 2	M18 x 1.5	Type	Tee
Max. Dynamic Pressure	630 Bar	Hex Size 1	22 MM
Weight	0.516 LB	Connection Specification 1	DIN 2353, ISO 8434-1
Hex Size 2	22 MM	Overall Length 3	25 MM
Body Hex	17 MM	Tube Size 1	10 MM
Thread Size 1	M18 x 1.5	Overall Length 2	30 MM
Hex Size 3	22 MM	Tube Size 3	M18 x 1.5
End Type 1	DIN Metric Tube Compression	End Type 2	Female Metric Standpipe DIN24D
Connection Specification 3	DIN 2353, ISO 8434-1	Connection Specification 2	DIN 2353, ISO 8434-1
Overall Length 1	34 MM	Thread Size 3	HEAVY 10MM TUBE OD
Tube Size 2	10 MM	End Type 3	DIN Metric Tube Compression
Raw Material Type	Steel Forging	Plating	Zinc Nickel
