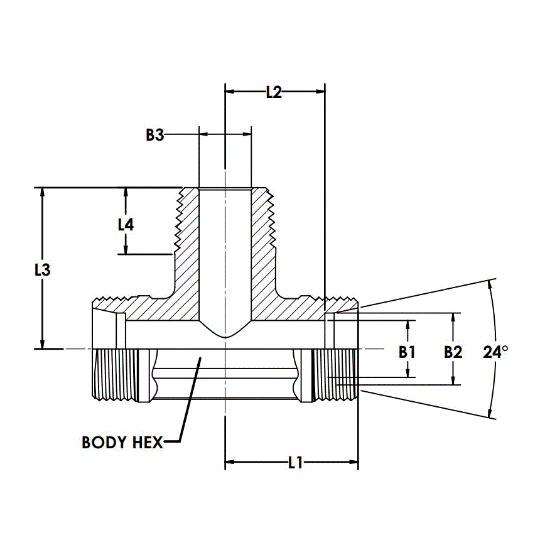

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

D7601-E06-E06-02-SS-X

Manufacturer: Brennan

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU D7601-E06-E06-02-SS-X

Products specifications

Attribute name	Attribute value
UOM	EA	Max. Dynamic Pressure	100 Bar
Weight	0.035 LB	Connection Specification 1	DIN 2353, ISO 8434-1
Material	Stainless Steel	Standard	Prop-65 Warning
Thread Size 2	M10 x 1.0	Series	D7601-X
Connection Type	MBT-MBT-MBSPT (Body Only)	Style	DIN Fitting
Type	Tee	Thread Size 1	M10 x 1.0
Body Hex	9 MM	Thread Size 3	1/8-28
Tube Size 2	6 MM	Tube Size 1	6 MM
Raw Material Type	Stainless Steel Forging	End Type 2	Male Metric 24 Degree DIN Seat
End Type 3	Male BSPT (R)	Connection Specification 2	DIN 2353, ISO 8434-1
End Type 1	Male Metric 24 Degree DIN Seat	Thread ID	4.5 MM
Connection Specification 3	ISO 7-1, DIN EN 10226-1
