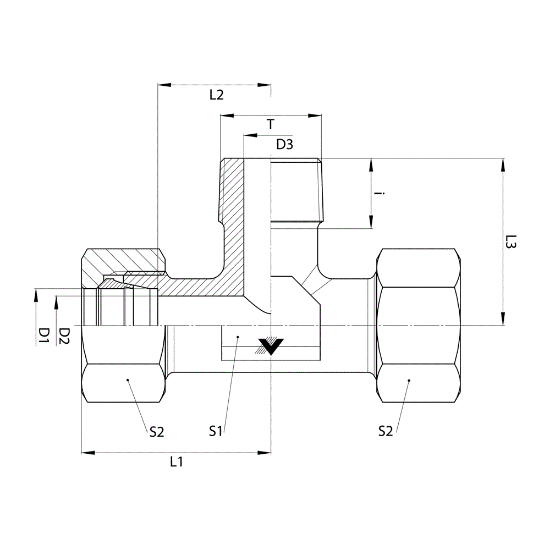

D7601-L12-L12-04-SS

Manufacturer: Brennan

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU D7601-L12-L12-04-SS

Products specifications

Attribute name	Attribute value
UOM	EA	Hex Size 1	22 MM
Standard	Prop-65 Warning	Weight	0.284 LB
Max. Dynamic Pressure	315 Bar	Series	D7601
Connection Type	MBT-MBT-MBSPT	Style	DIN Fitting
Material	Stainless Steel	Thread Size 2	M18 x 1.5
Connection Specification 1	DIN 2353, ISO 8434-1	Type	Tee
End Type 2	DIN Metric Tube Compression	Tube Size 2	12 MM
End Type 1	DIN Metric Tube Compression	End Type 3	Male BSPT (R)
Hex Size 2	22 MM	Thread Size 3	1/4-19
Raw Material Type	Stainless Steel Forging	Thread ID	7 MM
Body Hex	17 MM	Thread Size 1	M18 x 1.5
Tube Size 1	12 MM	Connection Specification 3	ISO 7-1, DIN EN 10226-1
Connection Specification 2	DIN 2353, ISO 8434-1
