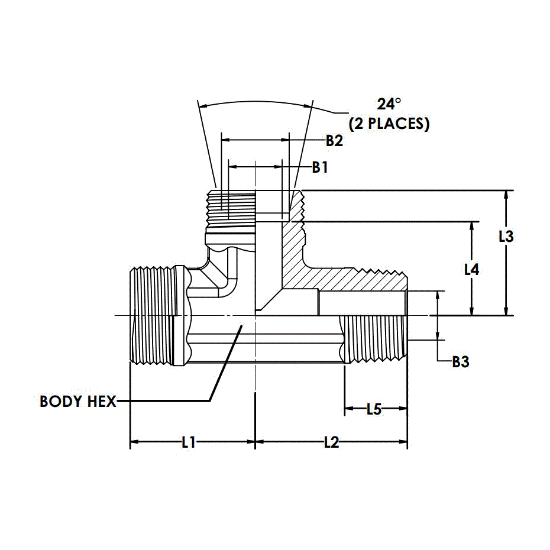

D7605-E06-02-E06-SS-X

Manufacturer: Brennan

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU D7605-E06-02-E06-SS-X

Products specifications

Attribute name	Attribute value
UOM	EA	Thread Size 2	1/8-28
Connection Type	MBT-MBSPT-MBT (Body Only)	Style	DIN Fitting
Type	Tee	Max. Dynamic Pressure	100 Bar
Weight	0.035 LB	Connection Specification 1	DIN 2353, ISO 8434-1
Series	D7605-X	Material	Stainless Steel
Standard	Prop-65 Warning	Thread Size 3	M10 x 1.0
Thread ID	4.5 MM	End Type 2	Male BSPT (R)
Connection Specification 3	DIN 2353, ISO 8434-1	End Type 1	Male Metric 24 Degree DIN Seat
Tube Size 1	6 MM	Connection Specification 2	ISO 7-1, DIN EN 10226-1
Thread Size 1	M10 x 1.0	Body Hex	9 MM
Tube Size 3	6 MM	End Type 3	Male Metric 24 Degree DIN Seat
Raw Material Type	Stainless Steel Forging
