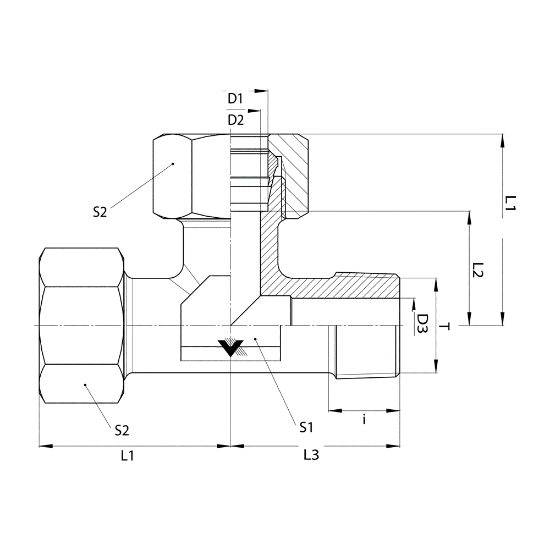

D7605-L08-04-L08

Manufacturer: Brennan

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU D7605-L08-04-L08

Products specifications

Attribute name	Attribute value
UOM	EA	Series	D7605
Material	Steel	Standard	Prop-65 Warning
Connection Type	MBT-MBSPT-MBT	Thread Size 2	1/4-19
Style	DIN Fitting	Connection Specification 1	DIN 2353, ISO 8434-1
Type	Tee	Hex Size 1	17 MM
Weight	0.178 LB	Max. Dynamic Pressure	315 Bar
End Type 2	Male BSPT (R)	Thread ID	6 MM
Thread Size 1	M14 x 1.5	Tube Size 1	8 MM
Body Hex	12 MM	End Type 1	DIN Metric Tube Compression
Hex Size 2	17 MM	End Type 3	DIN Metric Tube Compression
Connection Specification 3	DIN 2353, ISO 8434-1	Tube Size 3	8 MM
Connection Specification 2	ISO 7-1, DIN EN 10226-1	Thread Size 3	M14 x 1.5
Raw Material Type	Steel Forging	Plating	Zinc Nickel
