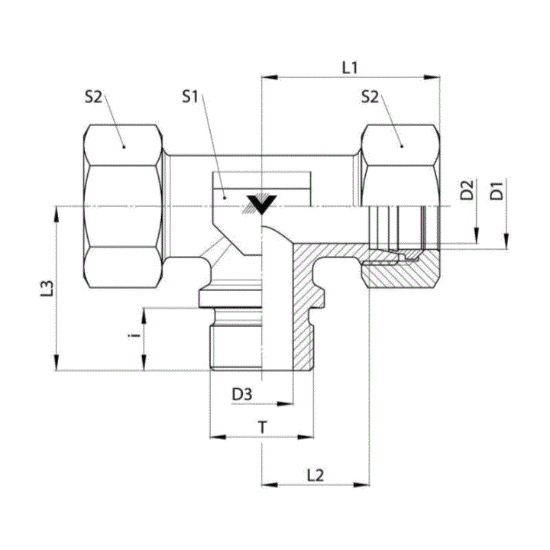

D7803-S30-S30-20-CF-SS

Manufacturer: Brennan

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU D7803-S30-S30-20-CF-SS

Products specifications

Attribute name	Attribute value
UOM	EA	Type	Tee
Connection Specification 1	DIN 2353, ISO 8434-1	Standard	Prop-65 Warning
Weight	2.949 LB	Max. Dynamic Pressure	160 Bar
Hex Size 1	50 MM	Style	DIN Fitting
Thread Size 2	M42 x 2.0	Series	D7803-CF
Connection Type	MBT-MBT-MBSPP CF	Material	Stainless Steel
Thread ID	25 MM	Tube Size 1	30 MM
End Type 3	Male BSPP Form B	Thread Size 3	1-1/4-11
Connection Specification 2	DIN 2353, ISO 8434-1	Body Hex	41 MM
Thread Size 1	M42 x 2.0	Tube Size 2	30 MM
End Type 2	DIN Metric Tube Compression	Hex Size 2	50 MM
End Type 1	DIN Metric Tube Compression	Connection Specification 3	DIN 3852-2 Form B
Raw Material Type	Stainless Steel Forging
