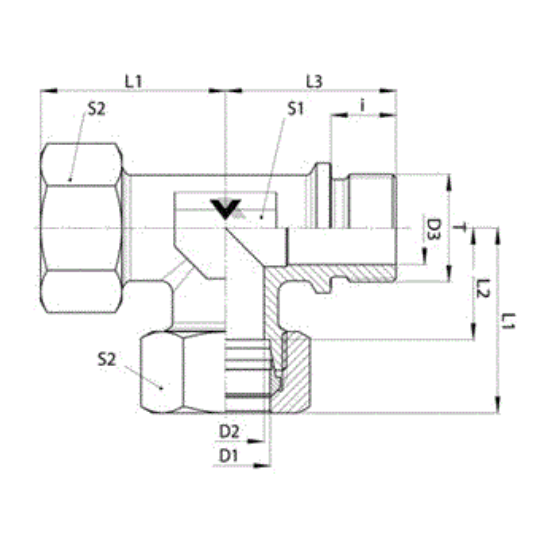

D7804-S20-12-S20-CF-SS

Manufacturer: Brennan

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU D7804-S20-12-S20-CF-SS

Products specifications

Attribute name	Attribute value
UOM	EA	Standard	Prop-65 Warning
Hex Size 1	36 MM	Style	DIN Fitting
Thread Size 2	3/4-14	Connection Type	MBT-MBSPP CF-MBT
Series	D7804-CF	Material	Stainless Steel
Type	Tee	Max. Dynamic Pressure	400 Bar
Weight	1.235 LB	Connection Specification 1	DIN 2353, ISO 8434-1
Hex Size 2	36 MM	Connection Specification 2	DIN 3852-2 Form B
Thread Size 3	M30 x 2.0	End Type 1	DIN Metric Tube Compression
End Type 2	Male BSPP Form B	Thread Size 1	M30 x 2.0
Raw Material Type	Stainless Steel Forging	Tube Size 3	20 MM
Body Hex	27 MM	End Type 3	DIN Metric Tube Compression
Tube Size 1	20 MM	Thread ID	16 MM
Connection Specification 3	DIN 2353, ISO 8434-1
