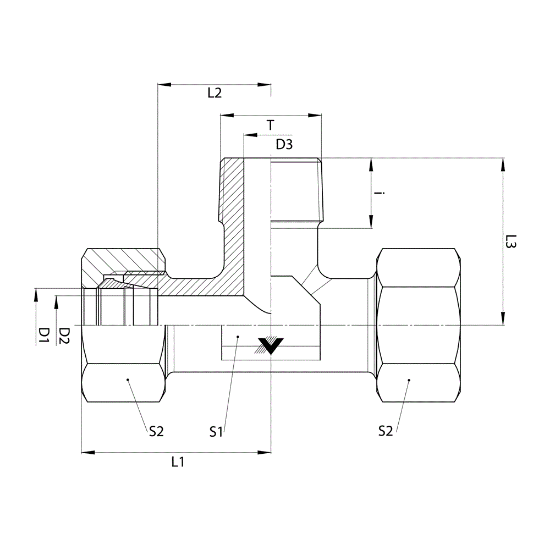

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

D8601-E08-E08-10-SS

Manufacturer: Brennan

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU D8601-E08-E08-10-SS

Products specifications

Attribute name	Attribute value
UOM	EA	Series	D8601
Material	Stainless Steel	Standard	Prop-65 Warning
Connection Type	MBT-MBT-MMT	Thread Size 2	M12 x 1.0
Style	DIN Fitting	Connection Specification 1	DIN 2353, ISO 8434-1
Type	Tee	Hex Size 1	14 MM
Max. Dynamic Pressure	100 Bar	Weight	0.090 LB
Thread ID	6 MM	Raw Material Type	Stainless Steel Forging
Tube Size 2	8 MM	Body Hex	12 MM
Tube Size 1	8 MM	Connection Specification 3	DIN 158
Thread Size 3	M10 x 1.0	End Type 3	Male Metric Tapered
Hex Size 2	14 MM	End Type 1	DIN Metric Tube Compression
Thread Size 1	M12 x 1.0	Connection Specification 2	DIN 2353, ISO 8434-1
End Type 2	DIN Metric Tube Compression
